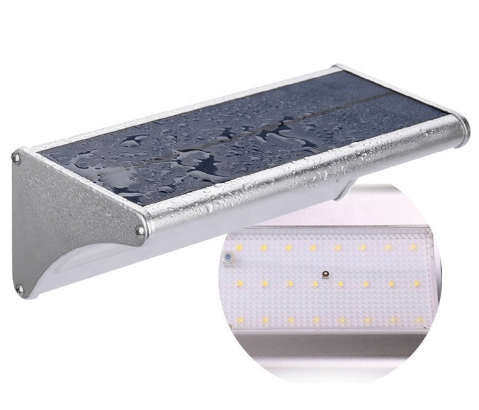

High Brightness high quality Waterproof outdoor ip65 24/48/60LED
Solar Wall lamp
New Technology-Radar Detecting
--- Much wider detection angle and farther detection distance
Longest Working Time And Safe
--- Lithium-Iron-Phosphate re-chargeable batteries --- more safe
and longer life
Brilliant And Flicker-Free
--- High-powered and flicker-free LED light source provides
450-1100 Lumen
Made of High-End Aluminium Alloy
--- Aluminium alloy housing, easy to clean, anti-scratch,
anti-ageing, anti-oxidant...
Automatic Control Modes
--- 4 lighting modes --- Full Bright + Dim, Full Bright + Off, Light
Always, High Bright at a fixed time.
| Parameters |
| Item No.: | SWP-24 | SWP-48 | SWP-60 |
| Solar Panel | 5V 1.5W | 5V 3.2W | 5V 4.2W |
| Battery Capacy: | 3.2V/1500MAH | 3.2V/3000MAH | 3.2V/3000MAH |
| Fully charging Time: | 6-8 hours | 6-8 hours | 6-8 hours |
| Light Sources: | 24 pcs SMD2835 | 48 pcs SMD2835 | 60 pcs SMD2835 |
| Lamp luminous flux: | 450LM | 900LM | 1100LM |
| CCT: | 2800K-3200K 4000K-4500K 6000K-6500K | 2800K-3200K 4000K-4500K 6000K-6500K | 2800K-3200K 4000K-4500K 6000K-6500K |
| Lighting Area Range: | <30㎡ | <50㎡ | <60㎡ |
| Detection Range | >180° / 5-10meter | >180° / 5-10meter | >180° / 5-10meter |
| Materials: | Alum.+ PC | Alum.+ PC | Alum.+ PC |
| Product Size: | 115*85*123mm | 240*108*85mm | 315*105*85mm |
| Working Temp.: | -10°~ +60° | -10°~ +60° | -10°~ +60° |
| Working Time(Mircro Wave Sensor Option): | 500 times(15 seconds / time) | 500 times(15 seconds / time) | 500 times(15 seconds / time) |
| Packing: | 48 PCS /48.5*32.5*37CM/17kgs/CTN | 24 PCS /48.5*32.5*37CM/17kgs/CTN | 15 PCS /50.5*42.5*27CM/14kgs/CTN |
Product Details
1. Micro-mode :
Induction mode When someone comes, the sensor triggers circuit to
start high light;
the light will dim after someone leaving for 15 seconds(Firstly
recommended to use)
2. Induction mode :
When someone comes, the sensor triggers circuit to start high light
the light will be turned off after someone leaving for 15 seconds
(Use in the places with short lighting time)
3. Always light mode
It will always light at night with no induction function(Used in
special places)
4. Emergency light mode
Commonly use for emergency lighting, such as power failure and
night activities.
The timing of emergency light mode is 30 minutes.
The solar panels should be restarted or illuminated after the
lights off
Product Installation
Product Application
