Linear fixture IP65 Weatherproof 2ft, 4ft and 8ft LED triproof
light For Commercial Shop
Tri-proof lights are 2 feet, 4 feet and 8 feet linear ceiling
lights for indoor commercial and residential lighting purposes.
There are various mounting options for these fixtures like surface
mounted , suspended and pendant mounting. LED ltri-proofcome in
3000K, 3500K, 4000K and 5000K color temperatures. Use LED tri-proof
lights in retail stores, warehouses, professional garages, closets
and kitchens. Commercial LED strip lights have dimmable and
linkable features.
Selling Point :
--- Tool-free saves on installation time and convenient for anybody
install.
--- Housing adopt optical polar PC material by two-color extrusion
process, excellent weather resistance.
--- The lamp plug is equipped with a respirator, which makes the lamp
breathable, dry and non-foggy.
--- IP65, waterproof, dust-proof, anti-corrosion.
--- The transparent part of the lampshade is optimized by illumination
optics principle, it is uniform, soft and without glare.
--- Installation: Ceiling/Suspended mounted
| Model | TP-20w-600 | TP-30w-900 | TP-40w-1200 | TP-60w-1500 |
| Wattage | 20W | 30W | 40-50W | 50-60W |
| Dimension L*W*H(mm) | 600(2ft)*83*68 | 900(3ft)*83*68 | 1200(4ft)*83*68 | 1500(5ft)*83*68 |
| LED/PCS | 120PCS | 168PCS | 240PCS | 288PCS |
| LED | SMD2835 |
| Voltage | AC100-277V (50Hz-60Hz) |
| Color Temp | 3000K-4000K-5000K-6000K |
| Luminous Efficiency | 120 lm/W |
| Material | PC+Aluminum alloy |
| Operating temperature | -20°C~+50°C, 10%~90%RH |
| IP & IK Rating | IP65 & (IK10/09) |
| Warranty | 3 Years |
| Installation | Ceiling-mounted, Adjustable Ceiling-mounted, Suspended |
Product Installation

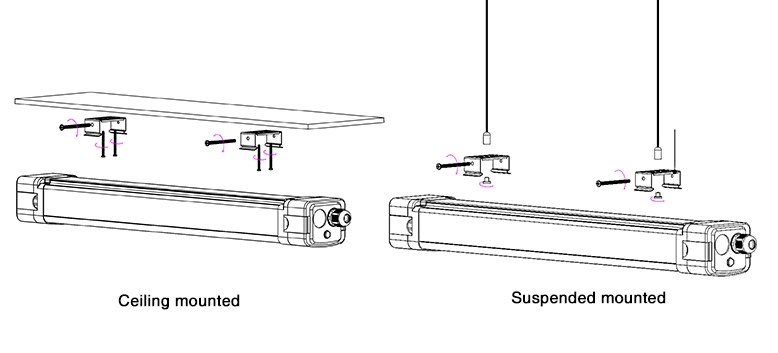

---- Ceiling Mounted and Suspened mounted
----Suggestions for end users
1)The lighting of the work environment is -20 to 40 °C, 45% RH-90%
RH
2)Please cut off the power at the time of thunder.
3) Do not touch and beat products while working.
4) Please make sure using in the normal environment
Product Applications
