Dimmable 40W Led Panel 600 X 600 Recessed Backlit Led Flat Panel
Light
• Back-lit led light panel is using the high
quality,uniformity,stable voltage,current led,small brightness and
wavelength scope as the light source.
• Different sizes of LED light panel for your options. Diversity in
shape (square, rectangle)
• Easy to install. Ideal to be built into system ceilings, offices,
and can be used as a hanging fixture.
• LED backlight panel using PP materials,more than 90% light
output,even light,no glare.
• Excellent heat disspation performance effectively ensure the
stability for long-term use.
• The beam angle of led panel light is120°.
• The led panel light is 0-10V dimmable.
• We will provide 2 or 3 years warranty for backlit led panel
light.
• Constant current driver with a power factor of 0.9.
Model No | PL-6060-40W/50W/60W | PL-30120-40W | PL-60120-80W |
PL-3030-20W
| PL-3060-20W |
Power Consumption | 40W/50W/60W | 40W | 80W |
20W
| 20W |
Dimension | 595x595x30mm | 295x1195x30mm | 595x1195x30mm | 295x295x30mm | 295x595x30mm |
LED Qty(pcs) | 48pcs | 45pcs | 90pcs |
16pcs
| 24pcs |
LED Type | 9V 1.5W SMD2835 |

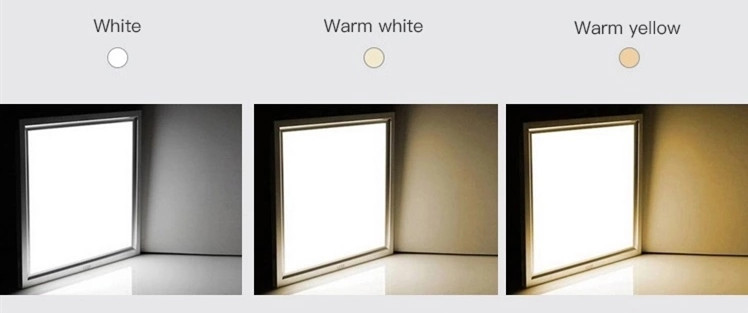

Color Temperature (K) | 2800 – 6500K |
Color | Warm/Natural/Cool White |
Luminous Flux (Lm/w) | 90lm/w |
Beam Angle (degree) | >120° |
CRI | >80 |
Power Factor | >0.9 |
Input Voltage | AC 220V - 240V |
Frequency Range (Hz) | 50 - 60Hz |
Working Environment | Indoor |
Material of Body | Aluminum alloy |
IP Rating | IP20 |
Operating Temperature | -20°~65° |
Dimmable | Optional |
Life span | 50,000hours |
Warranty | 2 Years or 3 Years |

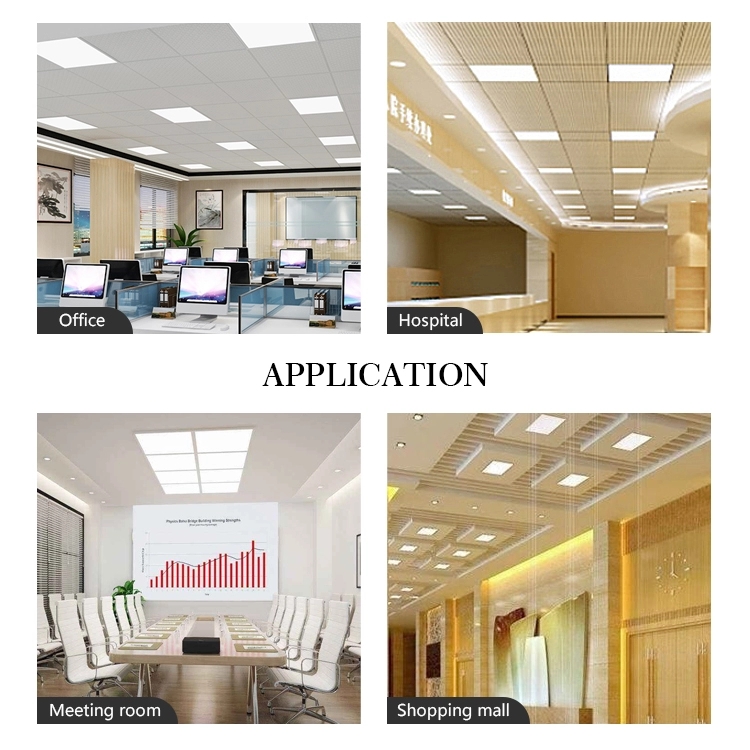

♦ Applications:
Widely used in home, office, meeting room, hotel, supermarket, show
room, shop, hospital, school etc.
1. Hotel,shopping malls can be universally used for decorative
lighting of various commercial places.
2. Office,meeting room, exhibition hall can be used for interior
lighting in the office building.
3. Residential lighting: washing room, corridor, storehouse ,etc.
4. Shop window ,painting displaying ,artwork performance ,etc can
be used for partial close-up lighting.
5. Hotels, Conference, Meeting rooms Lighting.
6. Bar , factory, airport and so on .

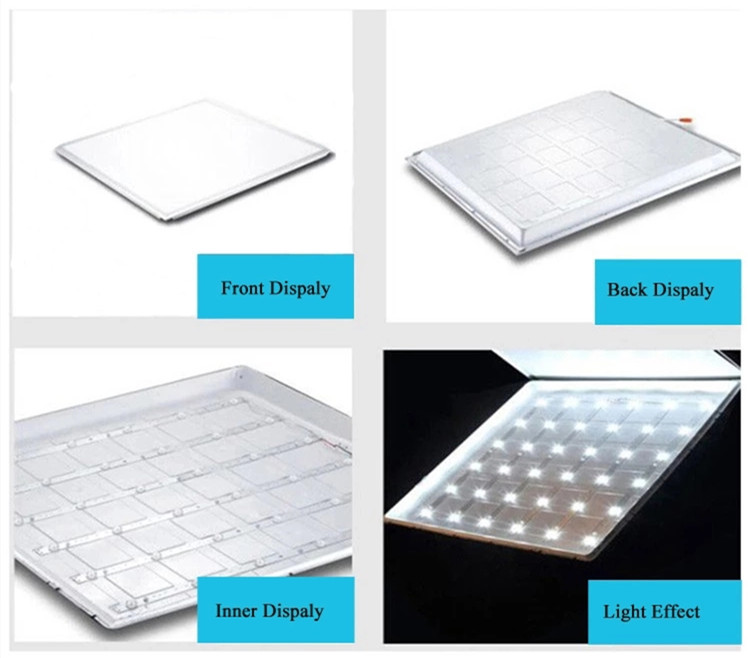

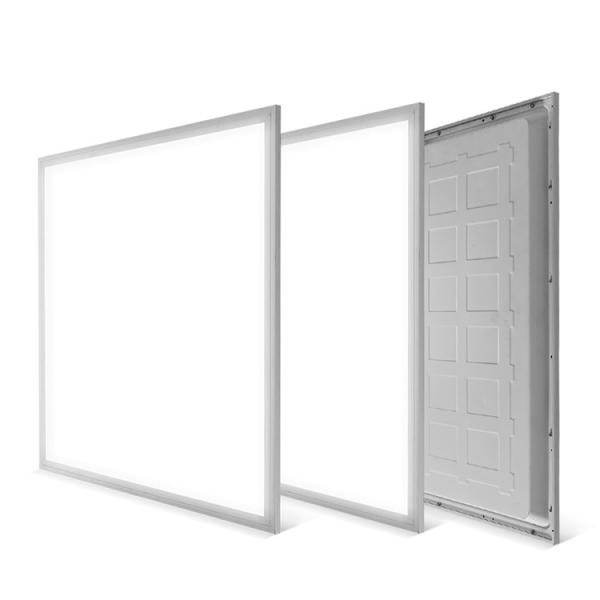

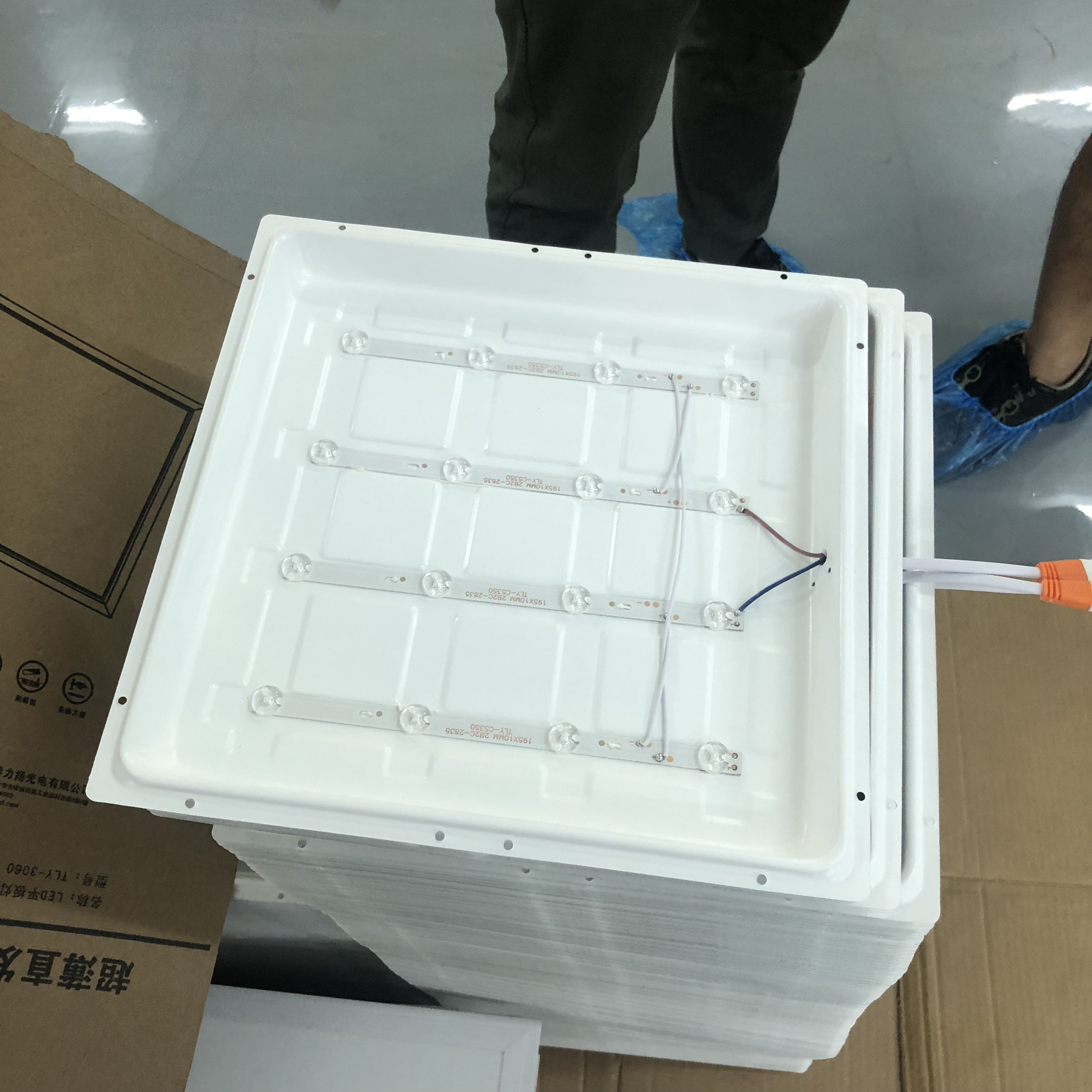

♦ Product Show
